Printers

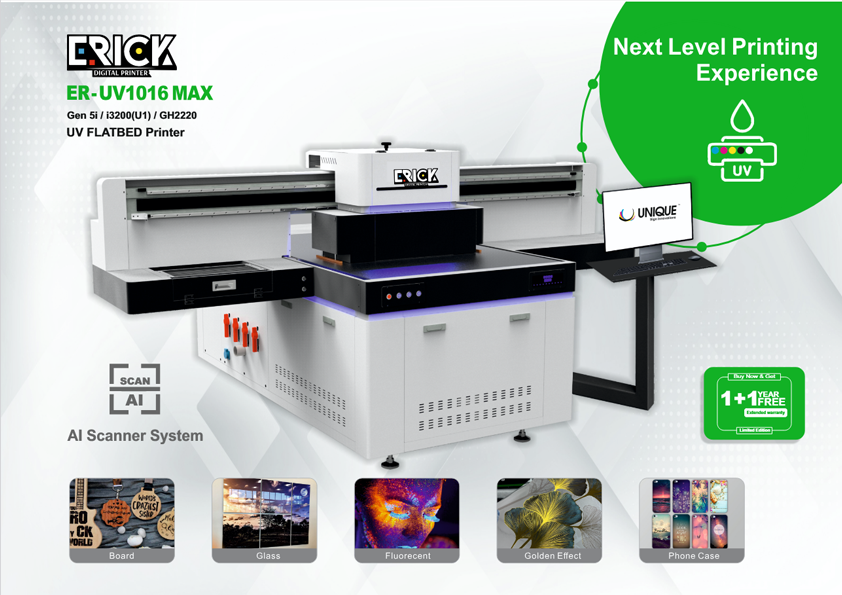

ERICK UV 1016 MAX - AI Scanner UV Flatbed Printer

Advanced UV flatbed printer with AI scanner system, supporting multiple print head options (Ricoh G5i, Epson i3200-U1, GH2220). Features intelligent scanning technology for precise positioning and exceptional print quality. Ideal for industrial applications requiring versatility and high-end output.

Technical Specifications

Print Size	1000mm × 1600mm
Print Height	90mm (clearance)
Print Heads Options	4-8 pcs (Ricoh G5i / Epson i3200-U1 / Ricoh GH2220), 6 pass: 8m²/h (Bi-directional), 8 pass: 6m²/h (Bi-directional)
Printing Speed (Epson i3200-U1)	6 pass: 8m²/h (Bi-directional), 8 pass: 6m²/h (Bi-directional)
Printing Speed (Ricoh GH2220)	Printing Speed (Ricoh GH2220):, 12 pass: 1.5m²/h (Bi-directional)
Print Colors	CMYK + W + V, CMYK + LC + LY + LK + LLK, CMYK + W + V + GOLDEN V
Supported File Formats	TIFF, JPEG, EPS, CDR, PSD, CAD
Print Software	Rip Print / Photo Print

Features

AI Scanner System for automated carriage scanning and positioning
UV carriage scanner for enhanced accuracy
Hiwin guide rail system for precision movement
Leadsine motor for reliable performance
Negative capping stations for print head protection
All-in-One computer option available
Multiple print head configurations for flexibility
Versatile color options including white, varnish, and gold
Special Offer: 1+1 Year FREE Extended Warranty
